Hydraulic Power Packs · Made in Chakan, Pune
AC and DC hydraulic power units built to your circuit — from 1HP compact packs to custom systems for presses, lifts, mobile equipment and OEM machines. Designed, machined and pressure tested at our Chakan facility.
15+
Years of hydraulic manufacturing
50,000+
Sq. ft. facility in Chakan, Pune
20+
Export countries served
10,000
PSI pressure testing
What It Does
A hydraulic power pack is a self-contained unit that turns electric power into hydraulic pressure and flow. It drives your cylinders, motors and actuators through a controlled circuit. We size every unit to your load, speed and duty cycle — not to a catalogue page.
Power Pack Range
Six families, each configurable to your pressure, flow and tank size.

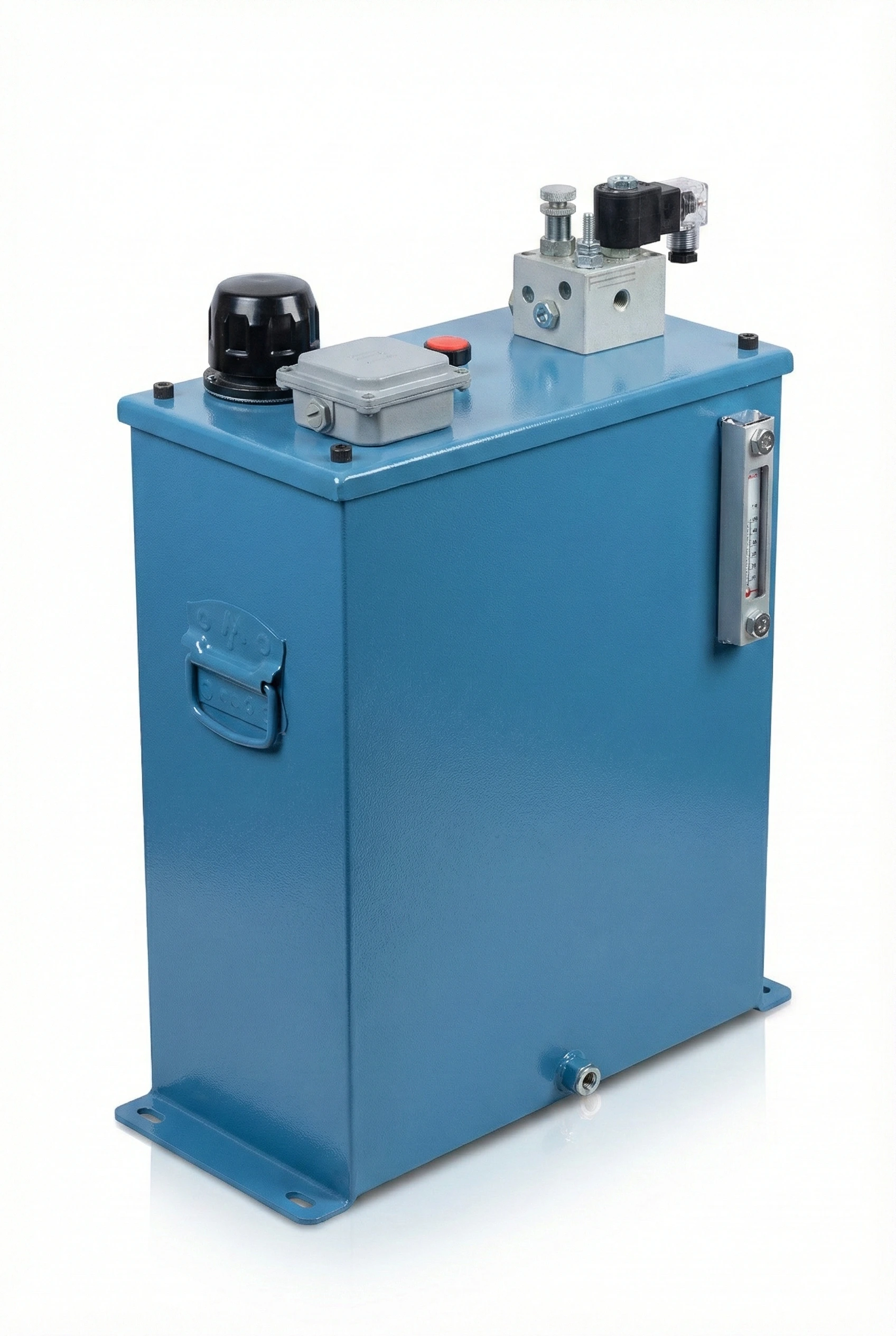

Compact units for low-flow, intermittent-duty circuits where space is tight.
1HP–5HP compact range at 230V / 380V, 6L to 50L tanks, plus custom heavy-duty builds.

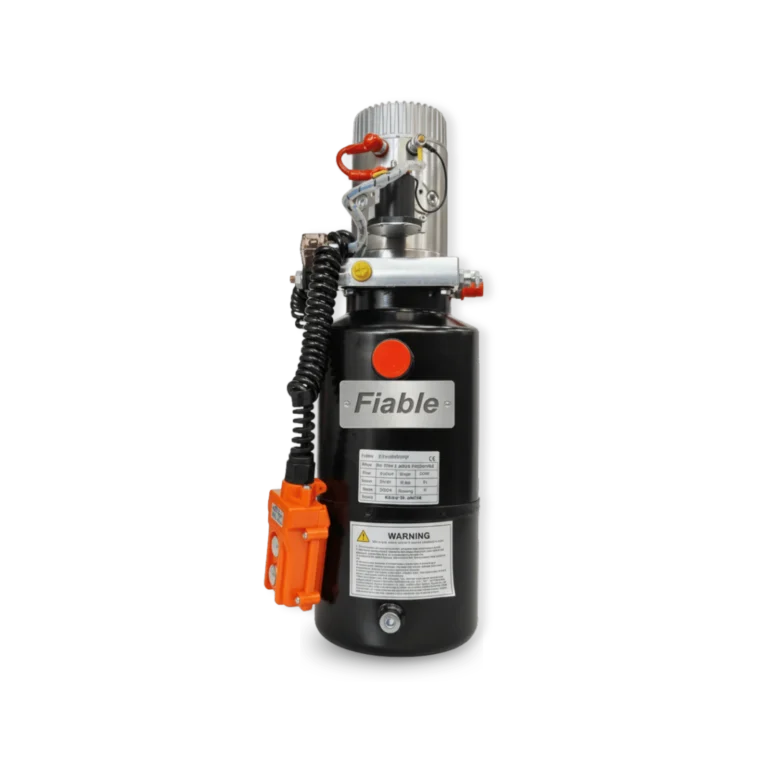

12V / 24V battery-driven units for tippers, tail lifts and mobile equipment.
2HP three-phase unit for dock levellers in warehouses and logistics hubs.
Built to your circuit drawing — multi-valve, higher power or special duty.
Configuration
Standard options across our power pack range. Every unit can be configured to your circuit.
Parameter
Options
Power source
AC electric motor (single / three phase) or DC motor (12V / 24V)
AC motor rating
1HP to 5HP compact range; higher ratings built to order
AC supply voltage
230V / 380V
DC supply voltage
12V / 24V battery
Pump displacement
1.0 / 2.0 / 3.3 / 4.2 / 5.8 / 7.0 / 9.0 cc/rev
Tank capacity
6L, 8L, 10L, 12L, 15L, 25L, 35L, 50L and customised
Manifold / circuit
Single-acting standard; other circuits built to your drawing
Application builds
2-post lift (4 ton / 4000 kg), 2HP three-phase dock leveller, tipper and tail-lift DC units
Testing
In-house pressure testing up to 10,000 PSI
Need a value outside this range? Send us your requirement — we build custom units to order.
Why Fiable
One team designs the circuit, machines the parts, assembles the unit and tests it.
We size motor, pump, tank and valves to your load, speed and duty cycle.
Manifolds and machined parts are made on our own CNC machines in Chakan.
Products are pressure tested in-house, with test capability up to 10,000 PSI.
Our engineers review your circuit and recommend the right configuration.
A documented quality system covers every stage from design to dispatch.
Delivery across India and exports to 20+ countries.
Applications
From press shops to mines — power packs sized for the duty of each industry.

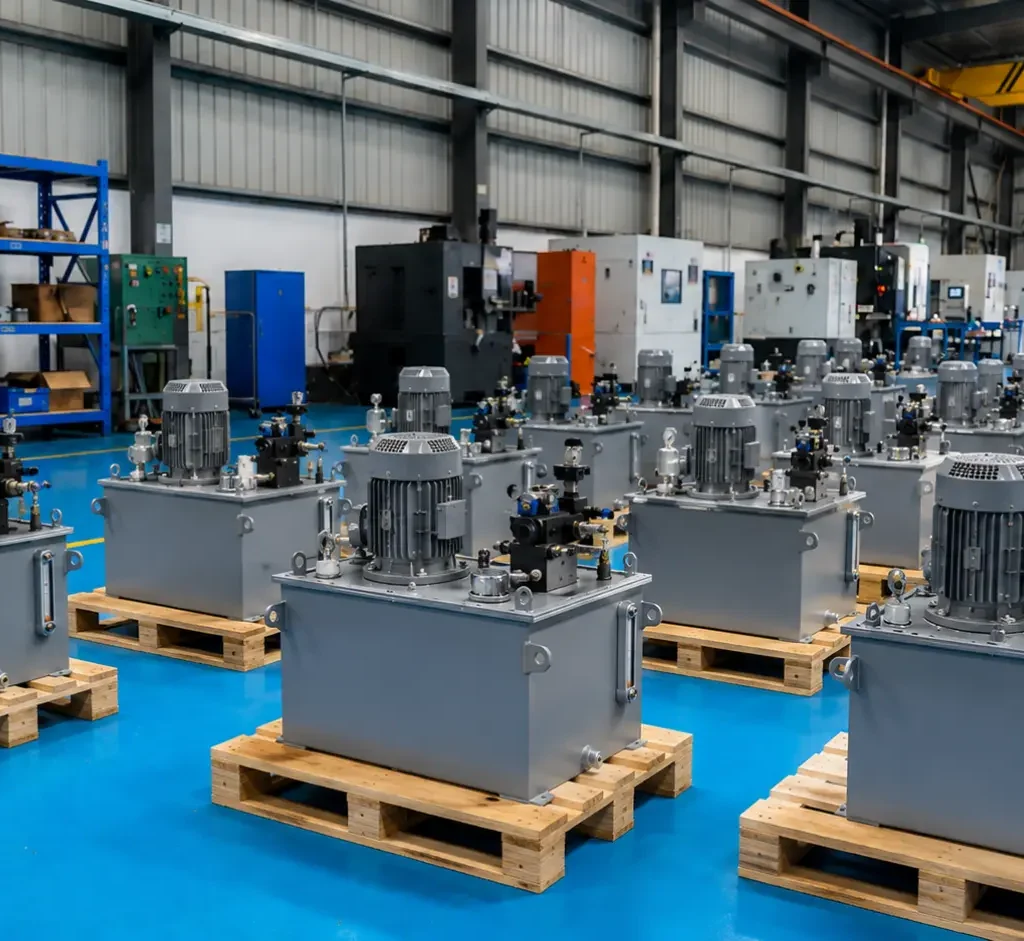

Our Facility
Design, CNC machining, assembly and pressure testing all happen under one roof. That gives you one point of contact and one team accountable for how your power pack performs.
Request a Quote
Share these details — or simply attach your drawing — and our engineers will size the right power pack for you.
Attach a drawing or circuit diagram if you have one.
FAQ
A hydraulic power pack is a self-contained unit with an electric motor, pump, oil tank, valves and filters. It supplies pressurised oil to cylinders and hydraulic motors so a machine can press, lift, clamp or move a load.
Choose AC for fixed machines with mains power — presses, dock levellers and industrial equipment (230V / 380V). Choose DC (12V / 24V) for mobile equipment that runs from a battery, such as tippers, tail lifts and vehicle-mounted systems.
Working pressure, flow rate or cylinder speed, cylinder bore and stroke, power supply, duty cycle and the valve functions you need. If you have a drawing or circuit diagram, attach it to the enquiry form — that is the fastest route to an accurate quote.
Yes. We build custom hydraulic power packs and complete systems to customer drawings and circuits, including special tank sizes, higher motor ratings and multi-valve manifolds.
Our products are pressure tested in-house at our Chakan facility, with test capability up to 10,000 PSI, under an ISO 9001:2015 certified quality system.
Yes. We deliver across India and export to more than 20 countries, including the Middle East.
Send your drawing or requirement. Our engineering team will recommend the right configuration.
Fiable Hydraulics Pvt. Ltd. is an ISO 9001:2015 certified manufacturer of hydraulic cylinders, power packs and complete hydraulic systems — designed, machined and pressure-tested at our facility in MIDC Chakan, Pune.
